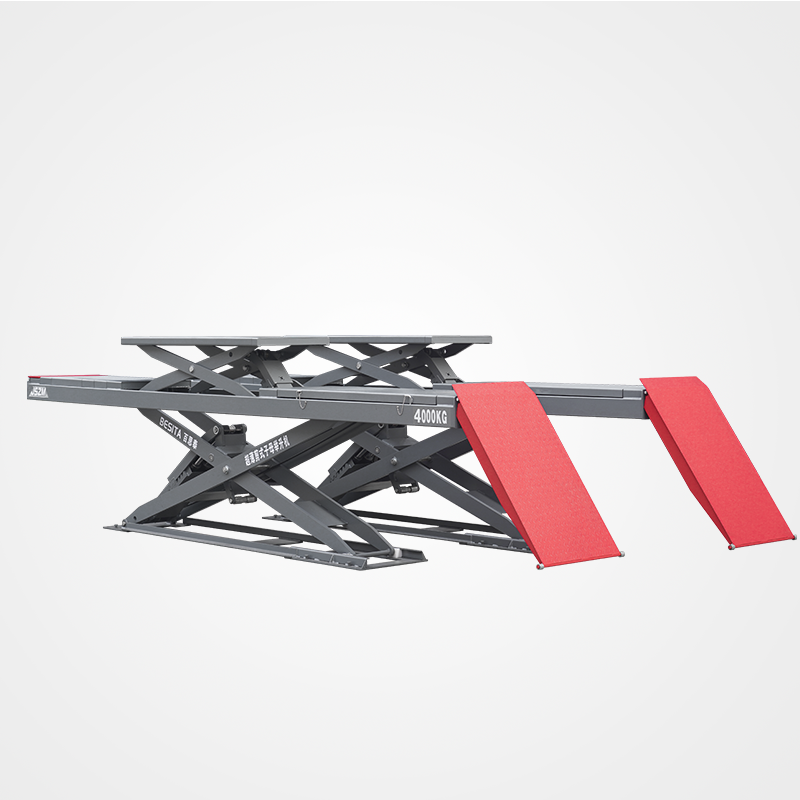

4T сверхтонкий ножничный подъемник

Drive mode: hydraulic
Main engine rated lifting weight: 4000kg
Main engine lifting height: 1800mm
Platform initial height: 220mm
Main engine platform length: 4500mm
Main engine platform width: 640mm
Main engine rise time: 50s
Main engine fall time: 30s
Total machine width: 2040mm
Total machine length: 5550mm
Main machine weight: 2000kg
Power supply: 220V/380V
Main machine power: 2.2KW
Hydraulic oil: No. 32 anti-wear and anti-freeze
Working environment: temperature -20℃/40℃
Air source pressure: 6.2bar
Machine noise: 75dB

1. The wheel position has multiple movable plates that can be flexibly adjusted, suitable for different wheelbases and different sizes of locator corner discs.
2. High-quality polymer wear-resistant sliders, durable.
3. The entire scissor-type cross support frame is made of 25mm thick steel plate, each hole is protected by a wear-resistant copper sleeve, and some cross shafts are added with butter holes to better protect the copper sleeve and shaft.
4. Both lifting platforms are equipped with unilateral stretching plates, which can be used for different wheelbase models.
5. The oil cylinder is 100% pressure-maintaining tested, durable, and four oil cylinders are driven synchronously, with super power.
